WELDING FABRICS
Texfire’s range of fabrics for welding, composed by multi-layered flame retardant fabrics and coated fabrics, has been designed to provide the highest protection and safety to users and their environment in front of soft, medium or hard welding (TIG, MIG, Electrode, etc.) as well as in cutting operations (radial, oxycut, plasma, etc.), polish and grinding.
After analyzing the features of each kind of welding, as well as the composition of the metals usually practiced, Texfire is able to offer a collection of flame retardant fabrics resistant to sparks derived from welding and impacts of fused metals, those fabric are able to withstand temperatures between 500ºC and 1,300ºC.
All Texfire’s fabrics are tested in our internal laboratory and they have collected several years of experience in the marketplace. All of them are made with inherent flame retardant fibers, which means that their nuclei don’t lose this feature with use nor with time. Also, the coatings of silicone, aluminium, vermiculite and silice raise their performance in features like waterproofing, resistance to abrasion, resistance to high temperatures and even regarding thermal insulation.

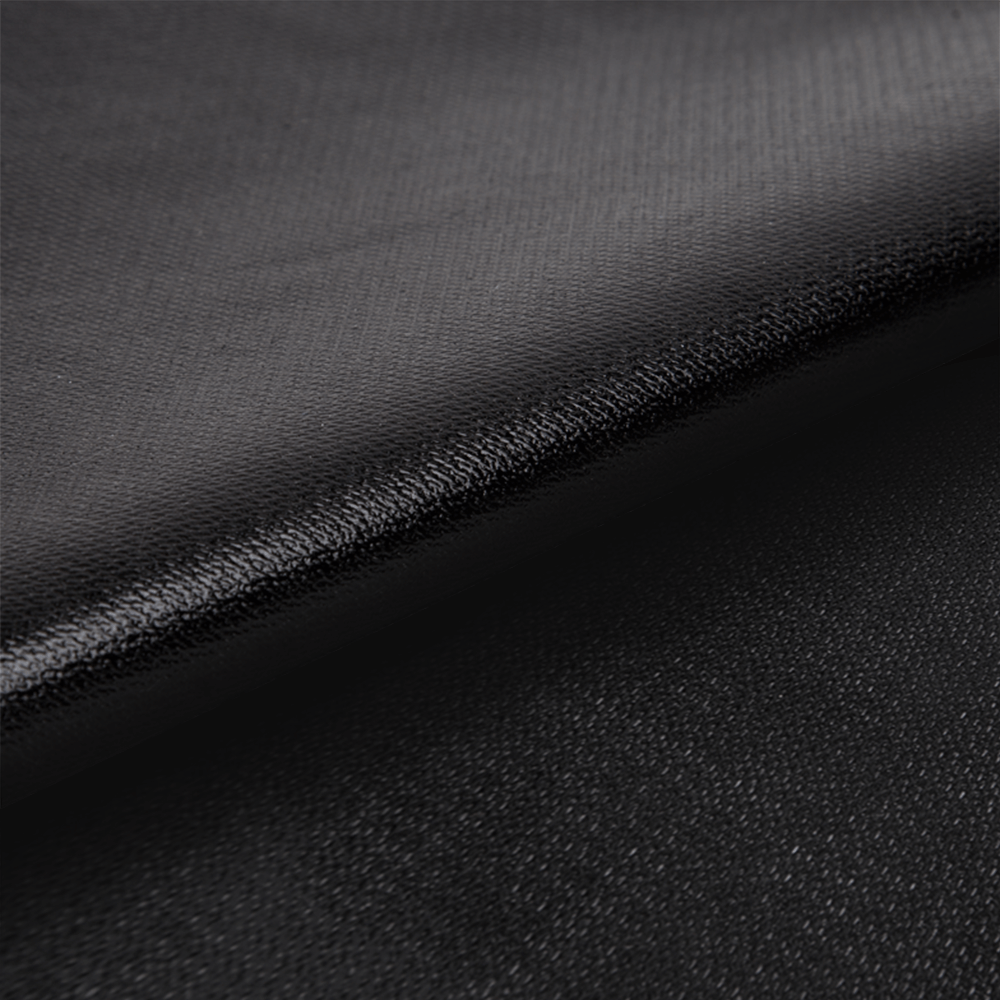

Flame retardant fiberglass fabric with silicone coating on both sides, designed to withstand splashes during welding work. Admits its use vertically.
Composition: 72%GL 28%SIL
Resistance: 250ºC in continuous. Punctual of 900ºC
Weight: 590 g/m² ±5%
Width: 150 cm
Featured: Resists molten metal splashes
Fibreglass composite fabric for mechanical strength and flexibility, with a grey silicone coating for high temperatures on both sides.
Composition: 72% E-glass 28% Ht silicone
Resistance: 300 ºC in continuous. Punctual of 900ºC
Weight: 590 gr/m² ±5%
Width: 150 cm
Featured: Impermeable to liquids and fumes, and can be used on both sides
Flame retardant fabric for high temperatures composed of a fiberglass core that incorporates a coating based on a polymer on both sides.
Composition: 93% Eglass 7% PU
Resistance: 550ºC in continuous
Weight: 460 gr/m² ±5%
Width: 200 cm ±2%
Featured: Excellent thermal resistance, electrical insulation
Fabric composed by an E-glass type fiberglass base of 1000gsm, offers a great mechanical resistance and is coated with a chemical treatment of vermiculite.
Composition: 72% PTFE 28% GL
Resistance: 600ºC in continuous
Weight: 1035 g/m² ±5%
Width: 100 cm
Featured: Excellent thermal conductor, resistant to abrasion and welding impacts
Fabric of mineral origin with a chemical treatment of vermiculite to enhance its dimensional stability, its resistance against chemical agents, abrasion and tears.
Composition: 100% Sílica
Resistance: 950ºC in continuous
Weight: 650 g/m² ±5%
Width: 91 cm ±2%
Featured: Excellent thermal resistance
