FABRICS FOR THERMAL BARRIER
Texfire’s collection of flame retardant fabrics that perform as a thermal barrier have as a main function to offer an optimal degree of thermal insulation, according to the requirements, in order to contain temperature and avoid heat loss. This type of fabrics are designed to be used in situations with high working temperatures in contact with some hot element, like, for example, in the internal layers of a multilayered combination of fabrics, either a lagging or a protection case.
Fiberglass, silice, PAN, cross-linked polyacrylate fibers, etc. are some of the materials used to create fabrics that can perform as a thermal barrier. The result is a versatile range of thermal insulating fabrics that resist working temperatures between 250ºC and 1,300ªC, with grammages from 180g/m2 up to 3,300g/m2, combined with different thicknesses (0.6mm-35mm.) and densities.
These fabrics have a construction of a non-woven type (also known as mats or woven-piles), offering a great malleability. Mainly, they are used as fillings or internal layers in multi-layered combinations to tailor flame retardant linings, fire blankets, drapes, acousting insulators, etc.
Nonwoven of pre-oxidized fibers, has a layer of aluminium, that offers a high resistance to passage of flames or fire.
Composition: 96% PAN 4% Aluminium
Resistance: 700ºC
Weight: 550 g/m² ±5%
Width: 150 cm
Featured: Insulation of convective, radiant or direct flame heat.
Fabric composed of a layer of fiberglass together with an aluminum foil that protects from continuous radiant heat, and another layer of charred PAN carbonized fabric to expand its insulating characteristics.
Composition: 48% GL 44% PAN 8% AL
Weight: 450 g/m² ±5%
Width: 150 cm
Featured: Thermal insulation

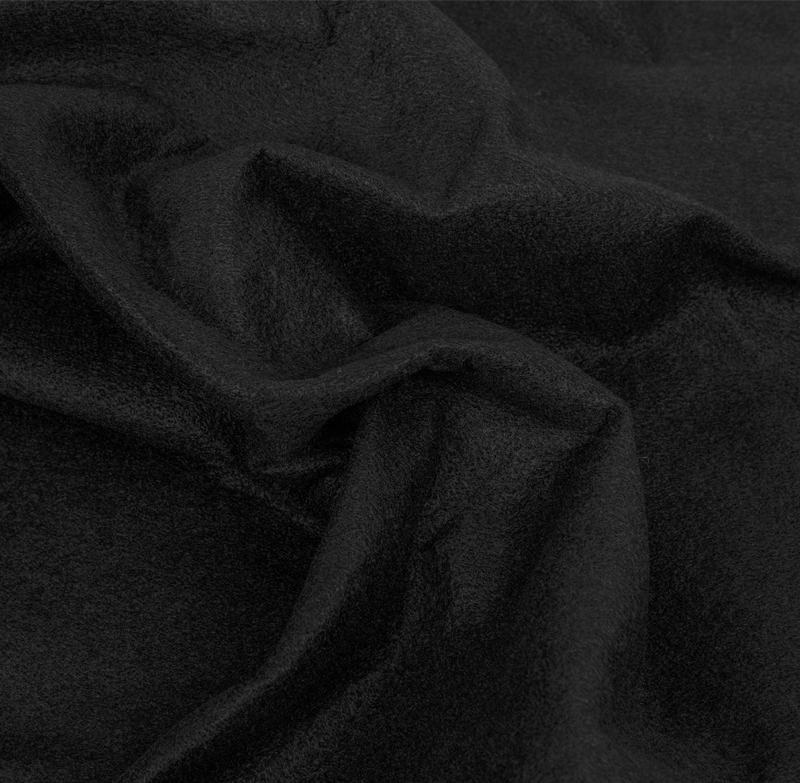

Precarbonized fibers effective blocking heat and acting as a thermal, acoustic and electric isolator.
Composition: 100% PAN
Resistance: 550ºC constant
Weight: 200 g/m² ±5%
Width: 160 cm
Featured: Thermal, acoustic and electrical insulator
This flame retardant mat is a needling made of silica fibers, without resin nor chemical binder. Offers a resistance to the flame and high temperatures.
Composition: >95% Silica
Resistance: 950ºC continuous
Weight: 1300 g/m² ±5%
Width: 100 cm ±2%
Featured: Thermal and acoustic insulator

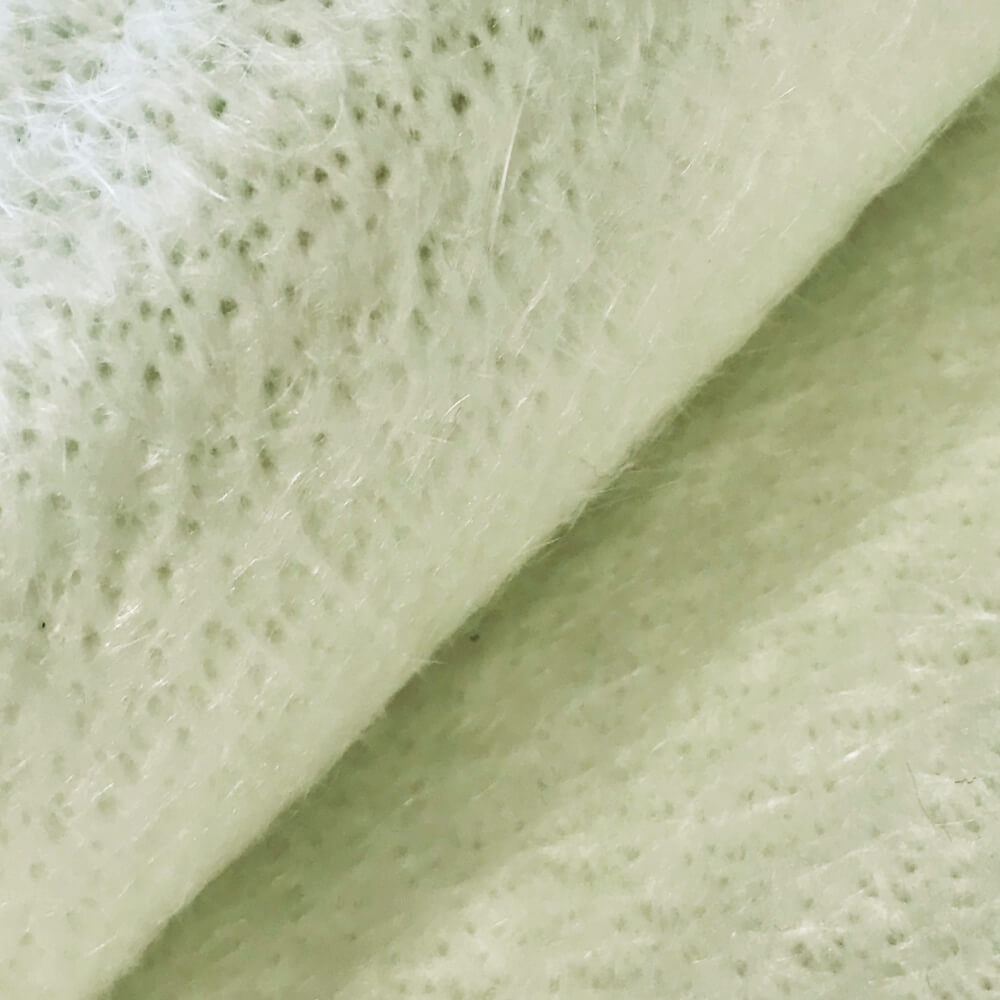

Is a E-Glass fiberglass needling very effective to block heat thanks to a combination of thermal conductivity with an optimized fiber density.
Composition: >98% E-Glass
Resistance: 500ºC constant
Weight: 1300g/m² ±5%
Width: 100 cm ±2%
Featured: Effective to block heat
It is effective to perform as a heat and acoustic insulator. Thanks to its thickness offers a very significant blockade and conservation of temperature
Composition: >98% E-Glass
Resistance: 500ºC continuous
Weight: 3300 g/m² ±5%
Width: 100 cm ±2%
Featured: Very significant blockade and conservation of temperature
