EXTREME TEMPERATURE SILICA 180 FABRIC
Ref:
21-133
LIGHTWEIGHT SILICA FABRIC FOR EXTREME TEMPERATURES
SILICA 180 is a flame retardant fabric that can withstand extreme heat conditions. It is composed of mineral fibres, primarily silica (95%). This mineral mainly contains silicon dioxide (SiO2), known for its excellent thermal stability and fire resistance.
SILICA 180 is a fabric capable of withstanding temperatures of up to 1,000°C while maintaining its structural integrity, making it an ideal material for use in industrial applications requiring extreme thermal protection.

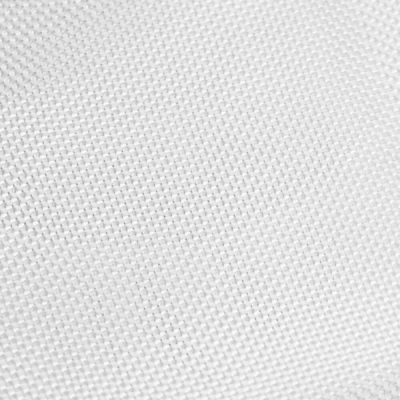

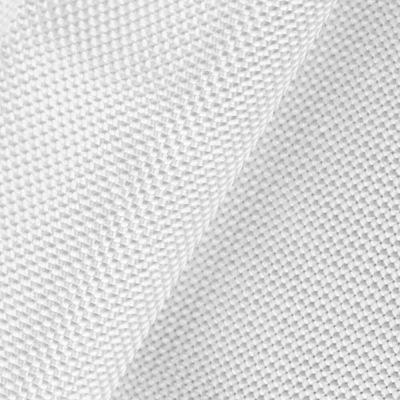

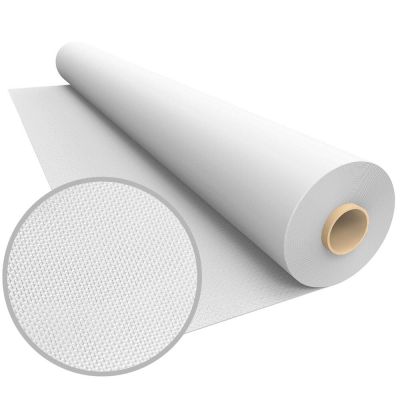

This fabric is made with a plain-weave structure, which gives it a tightly interlocked and very homogeneous structure, resulting in a very thin and lightweight fire resistant fabric with good thermal properties. It has an average thickness of just 0.2 mm, a weight of 180 g/m², and the fabric roll has a usable width of 92 cm.
In general, its thermal and mechanical properties make it versatile both as a structural base for other fabrics, such as aluminised fabrics, or for use in different solutions, such as thermal shields, fire barriers, or fire blankets.
SILICA 180 has been tested in Texfire’s internal laboratory according to the ISO 15025 standard – Test method for limited flame spread – and achieves the A1 and A2 classifications. It has also been tested according to ISO 9151 – Determination of heat transmission when exposed to flame – resulting in a B1 classification.
PROPERTIES
- Very lightweight fabric.
- Resists temperatures above 1,000°C continuously.
- Silica composition with over 95% content.
- Plain-weave structure.
- Good dimensional stability.
- Thickness of 0.2 mm, 180 g/m², and 92 cm width.
- Mineral fabric, but does not irritate human skin on contact.
- Inherently fire resistant, retains this property with use and over time.
Data sheet
- Convective heat
- ISO 9151 | B1
- Traction resistance
- ISO 13934-1 | Warp > 600 N/5 cm ±10% Weft > 600 N/5 cm ±10%
- Flame propagation
- ISO 15025 | A1 - A2
APPLICATIONS
- Insulation, mats or other thermal shields.
- Expansion / compensation joints.
- Covers for engines and exhaust pipes.
- Coating of parts or areas exposed to temperatures above 1,000ºC.
- Blanket for controlled cooling processes.
- Protective blanket for complex welding.
SECTORS
- Foundry.
- Metallurgy.
- Complex welding.
- Heavy machinery.
- Cement factories.
- Petrochemical industry.
- Boiler making.
- Construction.
- Mining.
USE RECOMMENDATIONS
- It is recommended not to rub.
- Never use alcohols, solvents, or detergents for cleaning. They may leave flammable residues.
- It can be used on both sides.
- It is recommended to always store it rolled up in a tube to prolong its lifespan.
- Check its condition before each use.
