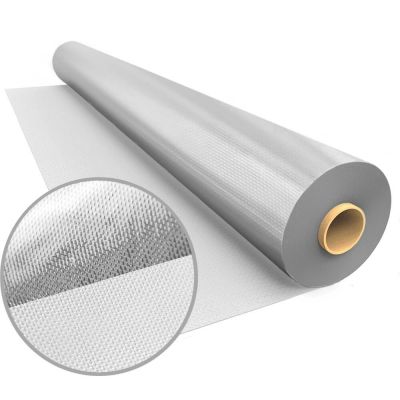

HIGH TEMPERATURE SILICA 300 AL FABRIC

Ref:
21-110

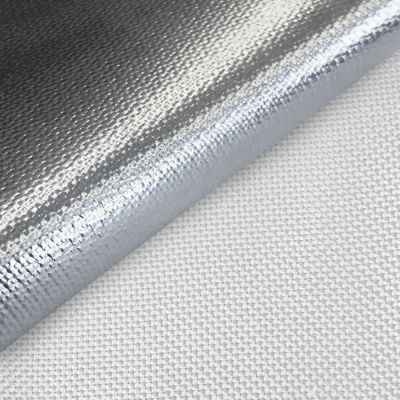

ALUMINIZED SILICA FABRIC ON ONE SIDE

The SILICA 300 AL flame retardant fabric has been developed to withstand continuous exposure to temperatures up to 850ºC without losing its structural integrity. Additionally, this fabric incorporates a 12-micron aluminum foil on one of its sides.

Its thermal resistance is provided by the filaments with which it is woven, composed of mineral fibers, mostly silica (95%). Silica is a mineral known for its excellent thermal stability and fire resistance, making SILICA 300 AL an ideal solution for industrial applications with extreme thermal demands.

SILICA 300 AL also stands out for its structural stability, even at high temperatures. This is due to its plain-weave structure, which gives it a locked and homogeneous structure.

This fabric has an average thickness of 0.38 mm, a weight of 400 g/m², and the fabric roll has an effective width of 90 cm.

Its structure and composition, combined with the aluminized finish on one side, make this fabric a very robust solution for protection against sources of radiant heat. It is ideal for solutions requiring high mechanical strength and advanced thermal protection, such as heat shields or flame barriers.

The SILICA 300 has been tested in Texfire's internal laboratory according to the ISO 15025 standard – Test method for limited flame spread – Achieving A1 and A2 classification. It has also been tested according to ISO 9151 – Determination of heat transmission when exposed to a flame – Achieving B1 classification. Additionally, it has been tested according to ISO 6942 – Evaluation of materials and material assemblies when exposed to a radiant heat source – Achieving C4 classification.

PROPERTIES

  • Temperature resistance up to 850ºC.
  • 12-micron aluminum foil.
  • Silica content above 95%.
  • Plain-weave structure.
  • Mineral fabric, but does not irritate human skin upon contact.
  • Inherent flame retardant with permanent properties that do not expire.
  • Good dimensional stability at high temperatures.
  • Thickness of 0.38mm, 400 g/m², and roll width of 90 cm.
Read more
€14.92
Fabric data sheet

Data sheet

Convective heat
Radiant heat
Flame propagation
APPLICATIONS

APPLICATIONS

  • Thermal shields for high temperatures.
  • Reflective heat screens.
  • Fire barriers.
  • Thermal covers.

SECTORS

  • Foundry.
  • Metallurgy.
  • Cement plants.
  • Petrochemicals.
  • Boiler-making.
  • Construction.
  • Mining.
RECOMMENDATIONS

USE RECOMMENDATIONS

  • It is recommended not to rub.
  • Never use alcohols, solvents, or detergents for cleaning. They may leave flammable residues.
  • It can be used on both sides.
  • It is recommended to always store it rolled up in a tube to prolong its lifespan.
  • Check its condition before each use.
