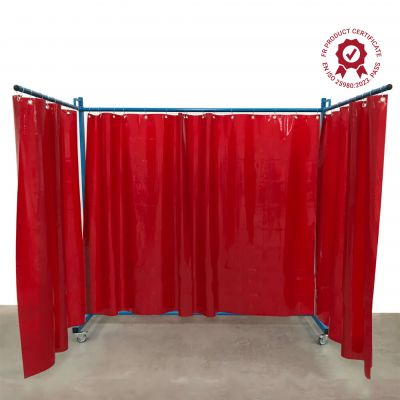

PVC WELDING CURTAIN

Ref:
65-003

SEMI-TRANSPARENT RED PVC CURTAIN FOR WELDING

The semi-transparent red PVC curtain from Texfire, which protects against blue light and radiation from IR and UV rays caused by the welding arc. Additionally, the curtain is resistant to sparks and molten metal splashes from welding and cutting work, acting as a protective screen. It has excellent resistance to friction, abrasion, and cutting.

The Texfire PVC curtain helps to delineate workspaces, ensuring safety and protecting personnel and the environment. It is effective on both sides for basic welding, grinding, and even in more severe welding and cutting processes.

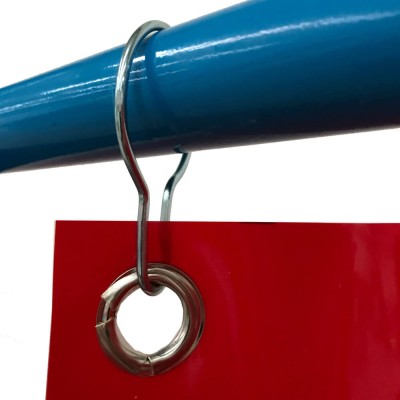

This product consists of 1 PVC curtain, measuring 1,800 mm in length and 1,400 mm in width, with a thickness of 0.40 mm. The curtain contains 5 metal eyelets on the top, for placing metal hooks and facilitating its installation on welding screens or structures. Hooks are included, but you can remove them using the selector on the right.

To equip the mobile welding structure offered by Texfire in its catalogue, a total of 4 welding curtains are needed: 2 curtains for the central body of the structure and 2 more, one for each arm of the structure.
To equip the armless welding screen structure, 2 welding curtains are needed. Texfire also offers a mobile arm welding screen structure that requires 4 curtains in total, to delineate a larger surface.

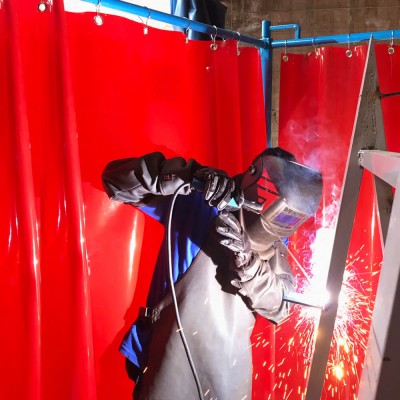

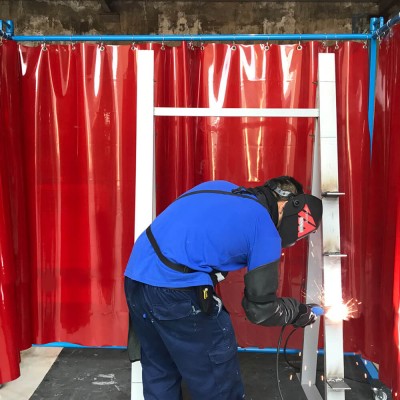

The Texfire PVC curtain is widely used in welding workshops to contain sparks and protect from blue light and harmful radiations. It is a flexible, practical curtain, easy to install, handle, and with a long lifespan.


PROPERTIES

  • This product does not include the screen structure.
  • Each curtain measures 1,800 mm in height by 1,400 mm in width and 0.40 mm in thickness.
  • Protects against blue light radiation and IR + UV radiation.
  • Resists sparks and impacts from welding projections.
  • Abrasion resistant.
  • Effective on both sides.

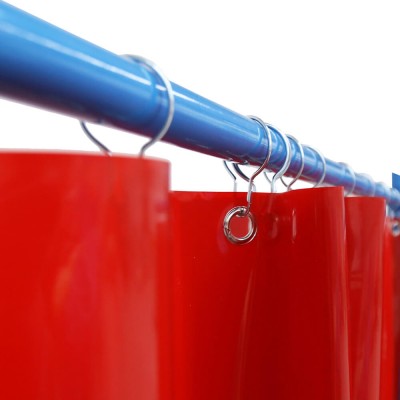

  • The curtain contains 5 eyelets and 5 hooks.
Read more
€73.00 Taxes included for Spain (21%)
Register to check your taxes
OUT OF STOCK
Notify me when available
Fabric data sheet

Data sheet

Fire resistance
EN 1598 | PASS
Thermal conductivity
ASTM C177 | 0,16 W/m.K
Work temperature
EN 1876 | Min. -25ºC and Max. 50ºC
Thermal properties
ISO 11357 | 1,6 kJ/kg.K
UV / IR Filter
ISO 25980 | COMPLIANCE
UV Resistance
ISO 4982 | PASS
Superficial resistvity
ASTM D257 | 30 Ω
APPLICATIONS

APPLICATIONS

  • Red semitransparent PVC curtain.
  • Welding curtain.
  • Area delimiter.
  • Protective curtain against blue light and welding radiations.
  • Protector of areas to weld.

SECTORS

  • Welding.
  • Chemical and petrochemical.
  • Construction.
  • Maintenance.
  • Mechanical workshops.
  • Railway.

RECOMMENDATIONS

USE RECOMMENDATIONS

  • Can be washed easily with a wet cloth.
  • Never clean it with alcohol, flammable remains can stay in the curtain.
  • Leave a separation distance of at least 1 metre between the welding area and the curtains.
