THERMAL INSULATION FOR GLOBE VALVES
Ref:
89-500

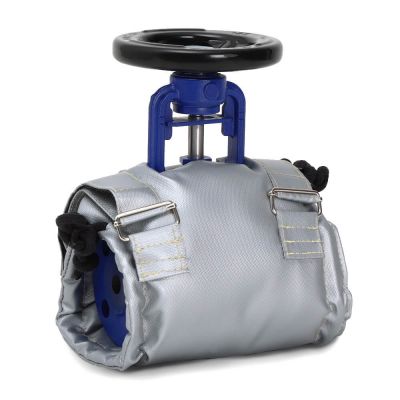

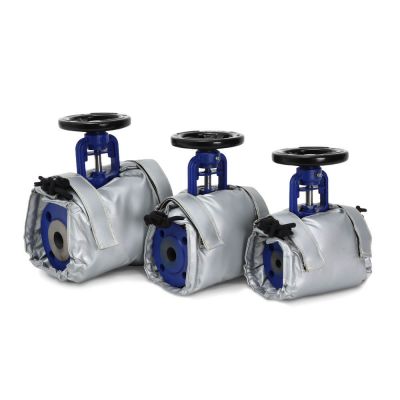

TEXTILE THERMAL INSULATING FOR GLOBE VALVES
Texfire's textile calorifuges for globe valves are multilayer solutions designed for the thermal insulation of valves operating in temperature ranges between 100°C and 400°C. They can be used both indoors and outdoors.
These calorifuges are designed to minimize heat loss, protect personnel from potential burns, and improve the energy efficiency of circuits. Performance optimization leads to economic savings and also the reduction of the carbon footprint.
The calorifuges are composed of three layers of fire resistant technical fabrics:
- Outer layer: Waterproof fabric that provides protection against weather or other external agents.
- Intermediate layer: Acts as a thermal insulation barrier.
- Inner layer: Two types of fabric are used depending on the valve's temperature range: for temperatures up to 180°C or in applications reaching up to 400°C.
The components used in Texfire's calorifuges are also fire resistant and of the highest quality. The fire resistant thread reinforced with steel ensures great mechanical strength and thermal stability under extreme conditions. The fire resistant Velcro allows for a secure closure, while the fire resistant cord ensures a precise fit at the ends of the calorifuge.

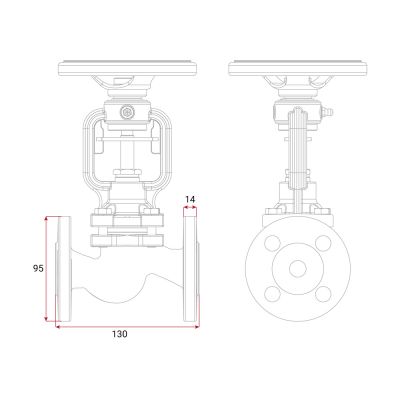

The textile insulation covers the valves from flange to flange, and the manufacturing department also offers the option to customize solutions to the specific measurements and thermal needs of each client.
The fabrics used in thermal insulation comply with the most prominent safety and flame retardant regulations, such as the WelsS2 fabric, certified under EN ISO 13501-1 – Classification based on the fire behavior of construction products and building elements, and the EGLA 1200IN fabric – Flame protection.
TECHNICAL MANUFACTURING FOR ALL TYPES OF VALVES
If you have a different type of valve or require another form of insulation, our technical manufacturing department can design custom thermal insulation tailored to your needs.
PROPERTIES
- Multilayer thermal insulation solution with flame retardant fabrics.

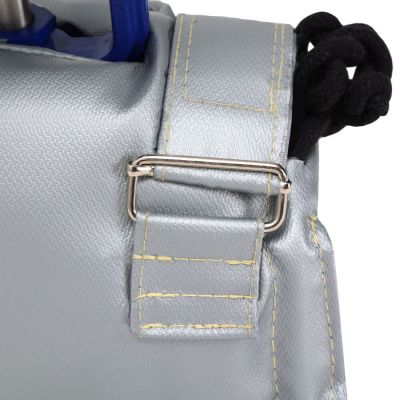

- Self-locking metal buckles.
- Fire resistant thread with steel reinforcement.

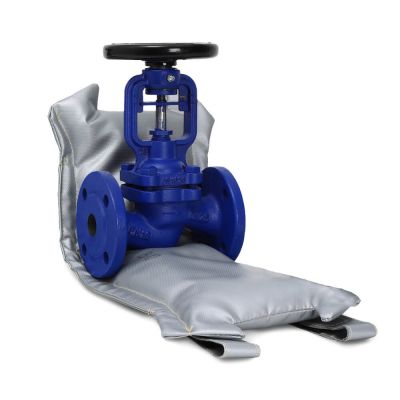

- Easy installation and removal for maintenance tasks.
