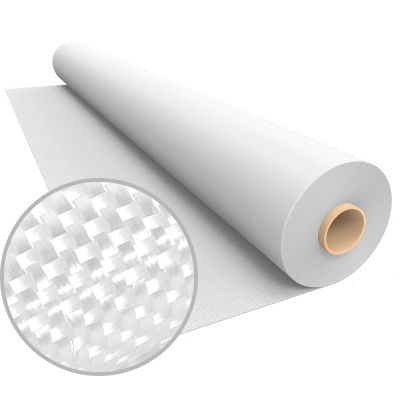

FIBERGLASS FABRIC EGLA 200

Ref:
21-019

FLAME RETARDANT FIBERGLASS FABRIC OF 200 GSM

The item EGLA 200 is a flame retardant fabric, with a taffeta binding, of E-glass fiberglass of 200 g/m2 and 150 cm wide. E-glass fibers can withstand continuous working temperatures of 300ºC up to 550ªC in working peaks. Flame retardant features are intrinsic to the fibers and don’t decrease with use nor time. Its features don’t expire.

EGLA 200 is a flame retardant fabric with great malleability, it adapts greatly to complex geometries and it’s widely used to protect or cover objects before fire or direct contact with flames. It is used to separate areas performing as a basic flame retardant curtain, or flame retardant drape. Another of its main uses is as a base of technical laminates or aluminized fabrics.

This fabric has been tested in Texfire’s internal laboratories according to regulation UNE-EN ISO 15025 - Test method for limited flame spreading – achieving A1-A2 classification. It offers a resistance to traction of 1900N in warp direction and other 1900N in weft direction according to regulation EN-ISO 13934-1- Features of fabrics before traction.


FEATURES

  • Fabric’s thickness 0,3 mm, weight of 200 g/m2 and useful width 150 cm.
  • It resists working temperatures of 300ºC and peak temperatures up to 550ºC.
  • Light and malleable fabric that adapts greatly to complex geometries.
  • Its flame retardant features are permanent, not decreasing with the use. Does not expire.
  • Does not spread flames.
  • Can be easily cut with scissors, but it tends to fray and release fibers.
Read more
€4.26
Fabric data sheet

Data sheet

Convective heat
ISO 9151 | B1
Traction resistance
EN 13934-1 | Warp 2700 NT Weft 1700 NT
Flame propagation
ISO 15025 | A1 - A2
APPLICATIONS

APPLICATIONS.

  • Flame retardant drapes.
  • Cases of protection against fire.
  • Flame retardant fabric to cover.
  • Thermal barrier.
  • Base of laminates or aluminized fabrics.

SECTORS.

  • Petrochemistries.
  • Construction and reforms.
  • Ship industry.
  • Installing and maintenance industries.
  • Foundries and metal industries.
  • Logistic, transport and storage companies.
  • Shows.
RECOMMENDATIONS

USE RECOMMENDATIONS.

  • Do not vacuum, brush nor rub because fibers can be released.
  • Check its status before its use.
  • It is recommended to store it always rolled as a tube in order to  extend its useful life.
  • It is recommended to handle the fabric with gloves, glasses and facemask in order to avoid fiberglass fibers to get in direct contact with skin, so they can cause slight irritation.
  • It is not recommended to use it as a fire blanket  (does not meet regulation EN 1869) nor as a welding blanket.
